When a Hand Pallet Truck Is the Right Tool for the Job
Hand pallet trucks handle the work that doesn't justify a forklift. Short moves. Staging and positioning. Loading and unloading delivery trucks. Backup coverage when a powered unit is down for service.
They're the right call in retail stockrooms, tight aisles, dock areas, and any operation where a powered unit is more equipment than the job requires. No batteries to charge, no chargers to install, no waiting on a unit to come back up.
For most operations, a manual jack isn't a compromise — it's the correct tool for a specific set of tasks that happen every day.
Call 800-926-2546 with your application and we'll tell you whether a manual unit covers it.
How a Hydraulic Pallet Jack Works — and What Makes One Last
A hydraulic pallet jack lifts through a hand-pumped cylinder. The operator slides the forks into the pallet, pumps the handle to raise the load a few inches off the floor, and moves it into position. The mechanism is simple. What separates a jack that runs for a decade from one that fails in eighteen months is the engineering built around it.
-
Productivity
Fork tip entry rollers ease the transition over the bottom pallet boards, so operators aren't fighting the pallet on every entry. -
Durability
Adjustable tubular push rods and self-lubricating bushings minimize wear at the points that fail first on lower-grade equipment. -
Ergonomics
A teardrop handle with a 3-way position lever gives operators precise load control without excess effort.
Raymond's cast one-piece hydraulic pumps are built to reduce service requirements over the life of the unit — a design decision that matters more the harder you run the equipment.
Find The Right Manual Pallet Jack For Your Operation
We carry twelve Raymond hand pallet truck models spanning 3,000 to 8,000 lbs capacity, with fork lengths from 36 to 96 inches and frame widths from 16 to 33 inches. That range covers standard warehouse work through specialty applications most suppliers can't accommodate. If you're looking for a manual pallet jack for sale in a standard configuration, the 5,000 and hand pallet truck 5500 lb models handle the majority of everyday pallet movement. Call 800-926-2546 with your load weight and pallet dimensions — we'll narrow it to a model in one conversation.
Find The Right Hand Pallet Truck For You
Pallet Truck With Scale
- Capacity: 5,000 lbs.
- Frame Width: 27"
- Fork Length: 48"
Learn More
RJ50N Hand Pallet Jack
- Capacity: 5,500 lbs.
- Fork Length: 36", 42", or 48"
- Frame Width: 16", 20.5", or 27"
Learn More

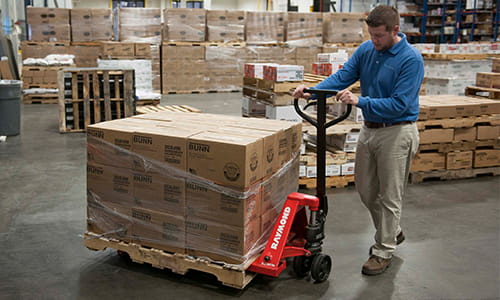

RJ50P Hand Pallet Jack
- Capacity: 5,000 lbs.
- Fork Length: 48"
- Frame Width: 20.5" or 27"
Learn More
LCF44 Freezer Special Hand Pallet Truck
- Capacity: 4,400 lbs.
- Fork Length: 48"
- Frame Width: 27"
Learn More
LCM4W and LCU4W 4-Way Hand Pallet Truck
- Capacity: 5,000 lbs.
- Frame Width: 33"
Learn More
LCM50 and LCU50 Low Profile Pallet Jacks
- Capacity: 5,000 lbs.
- Fork Length: 42" or 48"
- Frame Width: 20.5", 27", or 29"
Learn More
LCS80 Heavy-Duty Pallet Jack
- Capacity: 8,000 lbs.
- Fork Length: 48"
- Frame Width: 27"
Learn More
Altra Lift Hand Pallet Jack
- Capacity: 5,500 lbs.
- Fork Length: 36", 42", 48", or 72"
- Frame Width: 20.5" or 27"
Learn More
PST23 Power Start-Assist Hand Pallet Jack
- Capacity: 5,000 lbs.
- Fork Length: 36", 42", or 48"
- Frame Width: 20.5" or 27"
Learn More
RG30E Electric Skid Lifter Pallet Truck
- Capacity: 3,000 lbs.
- Fork Length: 48"
- Frame Width: 20.5" or 27"
- Battery: 12 volt DC (RG30E only)
Learn More
SS45 Stainless Steel Hand Pallet Jack
- Capacity: 4,400 lbs.
- Fork Length: 48"
- Frame Width: 27"
Learn More
LCS55 Unique Size Hand Pallet Trucks
- Capacity: 5,500 lbs.
- Fork Length: 36" to 96"
- Frame Width: 18", 20.5", or 27"
Learn More
Specialty Hand Pallet Jacks for Demanding Environments
This is where most suppliers run out of options. Standard equipment fails in cold storage, corrodes in washdown environments, and won't enter a four-way pallet from the side. Raymond builds purpose-designed units for each of these — and we stock the full range.
The LCF44 freezer pallet jack is built with galvanized components and corrosion-resistant treatments specifically for sub-freezing environments. Rated at 4,400 lbs with 48-inch forks. Standard jacks seize and corrode in cold storage; this one is engineered for it.
The SS45 stainless steel hand pallet jack handles sanitation-critical and corrosive applications where standard steel won't hold up. Rated at 4,400 lbs with a 27-inch frame width.
The LCM4W and LCU4W four-way models let operators enter pallets from any side and maneuver loads laterally in confined spaces. Rated at 5,000 lbs on a 33-inch frame — the right answer for operations where aisle geometry makes standard fork entry impractical.
The LCM50 and LCU50 low profile pallet jack models handle pallets with reduced clearance that standard forks can't enter. For non-standard load dimensions, the LCS55 offers fork lengths from 36 to 96 inches across three frame widths.
The LCS80 is a heavy duty hand pallet jack rated to 8,000 lbs — well above the standard 5,000 lb ceiling most suppliers stock. For operations that need to weigh loads in transit, the Pallet Truck With Scale integrates weighing directly into the jack, eliminating a separate step.
-
How to Spec the Right Pallet Jack in Four Steps
Most buyers get this right in about two minutes with the correct four inputs:
-
Heaviest load — Size above your maximum expected weight, not your average. A 5,000 lb unit running at 4,900 lbs daily wears faster than an 8,000 lb unit at the same load.
-
Fork length — Standard is 48 inches for a standard pallet. Shorter forks (36–42") work in confined spaces; longer forks handle oversized or double-stacked loads.
-
Frame width — Must match your pallet opening. Standard options run 20.5" and 27"; narrow (16") and wide (33") configurations exist for non-standard pallets.
-
Environment — Freezer, washdown, food-grade, or corrosive conditions require a specialty unit. Standard equipment will not survive them.
Have those four answers ready and any conversation about equipment gets a lot shorter.
Call 800-926-2546 and we'll walk the four inputs with you.
-
-

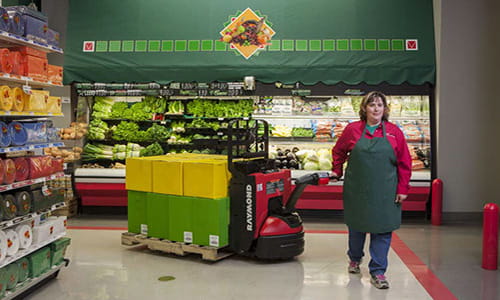

Manual or Electric? How to Know Which One You Need
The decision comes down to how often the equipment runs and how far it travels.
Manual jacks make sense for short distances, intermittent use, staging work, and operations where the cost and infrastructure of powered equipment isn't justified. Electric units make sense for long travel distances, high-frequency use, and applications where operator fatigue is affecting throughput.
If your team is moving pallets across a full warehouse floor multiple times an hour, powered equipment will pay for itself. If they're staging loads at a dock or repositioning pallets in a stockroom, a manual unit does the job at a fraction of the cost. We carry electric pallet jacks as well, and we'll tell you honestly which direction fits your operation.
What You Get Buying From an Authorized Raymond Dealer
-
Factory-certified technicians
Our service team is trained on this equipment specifically, not generically. When a pump fails or a bushing wears, someone who knows the unit handles it. -

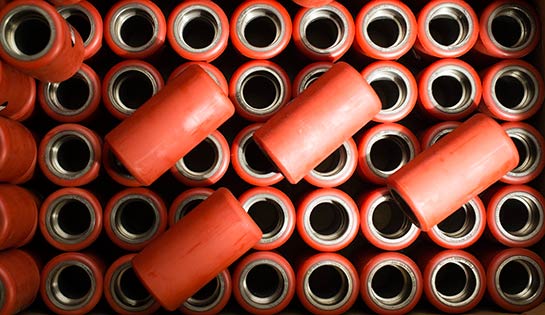

Parts availability
We stock Raymond parts. A jack that's down for a week waiting on a component isn't saving anyone money. -
Over 50 years as an authorized dealer
Raymond invented this equipment category. We've represented them since long before most competitors existed.
The difference between a dealer and a retailer shows up the first time something needs service. Malin has been supporting material handling operations for five decades, and that support extends to the smallest equipment in your fleet.
Get the Right Hand Pallet Truck on Your Floor
You now know what capacity range fits your loads, which specialty models exist for demanding environments, and how to narrow twelve options down to one in four questions. What's left is a short conversation. Bring us your heaviest load, your pallet dimensions, and your operating environment. We'll tell you which model fits — and if a manual unit isn't the right answer for your operation, we'll tell you that too. Call 800-926-2546 with your specs, or request a quote on hand pallet trucks.
Interested in a Raymond Hand Pallet Truck? Let's Talk!
A representative will use the information you provide below to develop the best solutions for your operation.
Learn more about manual pallet jack capacities, operation, specialty applications, and service support.
Our Raymond hand pallet trucks range from 3,000 to 8,000 lbs, with 5,000 and 5,500 lb models covering most standard warehouse applications. Size above your heaviest expected load rather than your average — running a jack consistently near its rated ceiling accelerates wear on the hydraulic system and frame. If you're regularly moving loads above 5,500 lbs, the LCS80 at 8,000 lbs is the right starting point.
The operator slides the forks into a pallet, then pumps the handle to engage a hydraulic cylinder that raises the load a few inches off the floor. Once lifted, the pallet is pulled or pushed to its destination and lowered by releasing hydraulic pressure through the handle lever. There's no power source involved — the operator provides both the lifting force and the movement.
A manual pallet jack relies on the operator for both lifting and horizontal movement, which suits short distances and intermittent use. An electric pallet jack uses a battery-powered motor for both functions, reducing operator effort on long travel routes and high-frequency applications. If your operation involves long warehouse runs or continuous pallet movement, powered equipment typically delivers better throughput.
Yes. The LCF44 Freezer Special is built with galvanized components and corrosion-resistant treatment for sub-freezing storage, and the SS45 stainless steel model is designed for washdown and sanitation-critical environments. Standard hand pallet trucks corrode and seize in these conditions — using purpose-built equipment is the difference between a jack that lasts and one that fails within a season.
As an authorized Raymond dealer, we stock parts and employ factory-certified technicians trained on this equipment specifically. A hydraulic pump rebuild, a worn bushing, or a damaged fork gets handled by someone who knows the unit rather than a general repair shop. This is the practical difference between buying from a dealer and buying from an online retailer.
Manual Pallet Jack Questions, Answered
What Capacity Manual Pallet Jack Do I Need?
How Does a Manual Pallet Jack Work?
What's the Difference Between a Manual and Electric Pallet Jack?
Do You Carry Pallet Jacks for Freezer or Food-Grade Applications?
What Happens if a Manual Pallet Jack Needs Service or Parts?
