Sideloaders Built To Perform Sideloaders are designed for handling long, bulky materials such as bar stock, tubing, laminates, plywood sheets, and other loads that are difficult to move with standard forklifts.
The Raymond 9300 and 9400 Sideloader forklifts make short work of long and bulky loads with high-lift capability and exceptional maneuverability. With a robust 6,000 lbs., 10,000 lbs., or 12,000 lbs. capacity and load handling up to 26 feet long, these sideloaders are versatile for a wide range of essential warehouse tasks, such as transporting, rack storage, feeding machine tools and work cells, and moving materials like bar stock, tubing, laminates and plywood sheets in very narrow aisles and while stacking up to 30 feet high.
Find The Right Raymond Sideloader For Long Load Handling
Increase Productivity And Space Utilization
How do sideloaders improve space utilization?
With Raymond's exclusive ACR System, the Model 9300 and 9400 Sideloaders deliver faster travel speeds, quick acceleration, more uptime, fewer battery changes and lower maintenance costs, for greater efficiency and a lower total cost of ownership. And, with operator-friendly features like power steering, precision fork tilt, variable speed lift-lower control and crab steering, you can count on these sideloaders to provide enhanced productivity and operator comfort throughout the shift.
-

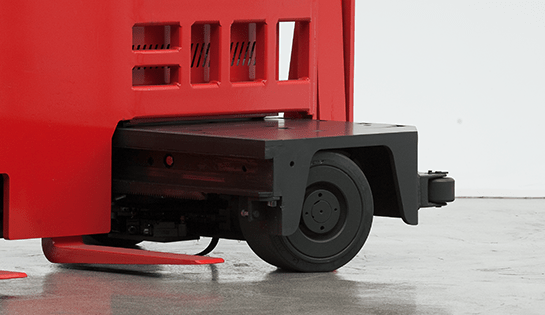

Independent Wheel Movement
-

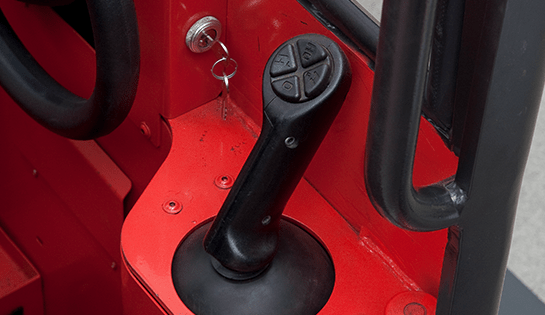

Single-Axis Control Handles
-

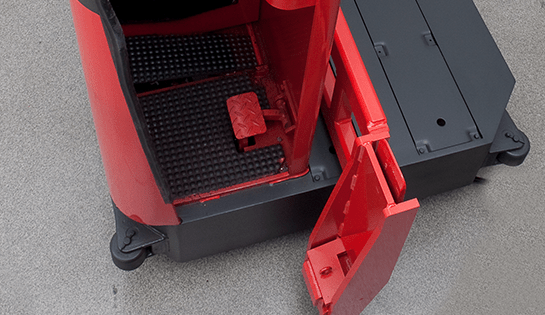

Cushioned Floor Mat & Guide Roller
Interested in a Raymond Sideloader Lift Truck? Let's Talk!
A representative will use the information you provide below to develop the best solutions for your operation.
-
Flexible Financing Solutions To Meet Your Needs In today's changing business climate, we recognize that most operations are experiencing different challenges. We have multiple financing options available to help maximize your cash flow. Our leasing programs offer a low cost of ownership, competitive interest rates, and have a variety of affordable and flexible options to grow your business at fixed costs while our equipment rentals and pre-owned lift trucks help you react quickly with a wide range of models, in-stock and ready to be delivered when you need them. Furthermore, our forklift support services and forklift operator training help to ensure your forklifts are properly maintained and your staff are ready to meet your business needs at all times.
Learn more about sideloader forklifts, lift capacities, long-load handling, narrow aisle performance, and common industrial applications.
A sideloader carries loads parallel to the direction of travel instead of in front of the truck, allowing it to transport long, bulky materials through narrow aisles. Common applications include loading cantilever racking, supplying machine tools and work cells, and moving long materials through facilities where a conventional forklift would require much wider aisles.

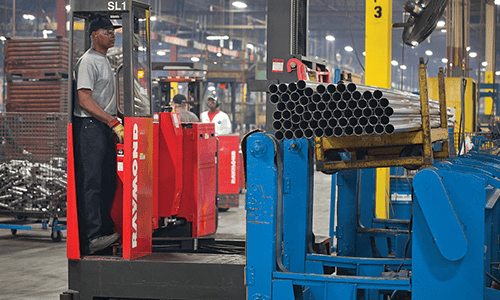

Sideloaders are designed to handle materials that are too long for standard forklifts. Typical loads include bar stock, structural steel, tubing, pipe, lumber, plywood, laminates, and extruded profiles. Raymond sideloaders can transport materials up to 26 feet in length.

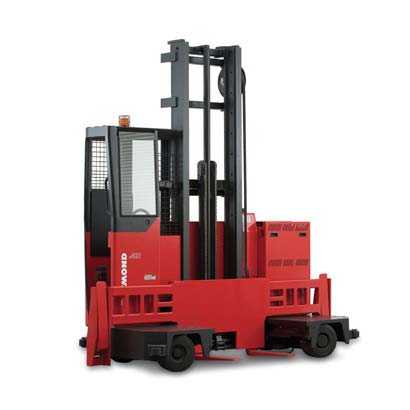

The Raymond 9300 sideloader handles loads up to 6,000 pounds with lift heights reaching 360 inches. The 9400 handles up to 12,000 pounds at heights up to 367 inches, with a 10,000-pound configuration also available. Both models operate on 48-volt battery systems and feature Raymond's ACR System for faster travel speeds and lower total cost of ownership.
Raymond sideloaders can transport loads up to 26 feet in length, far exceeding the capabilities of conventional counterbalanced and reach trucks. Combined with stacking heights of up to 30 feet, they are well suited for storing and transporting long materials in industrial and manufacturing facilities.
Yes. Narrow aisle performance is one of the primary advantages of a sideloader. Because the load travels parallel to the truck, sideloaders can operate in aisles that are too narrow for a counterbalanced forklift carrying the same material. Crab steering and independent wheel movement provide exceptional maneuverability in confined spaces.
Common users include steel service centers, lumber yards, building material distributors, metal fabricators, and manufacturers handling long or bulky products. Sideloaders are also ideal for operations storing or processing bar stock, pipe, tubing, sheet goods, and structural materials.
A counterbalanced forklift creates significant load overhang when transporting long materials and requires much wider aisles to operate safely. A sideloader carries the load parallel to the direction of travel, eliminating these limitations while improving stability.
With stacking heights up to 30 feet, crab steering, and variable-speed lift and lower controls, Raymond sideloaders provide excellent precision and efficiency when handling long materials in industrial warehouse environments.
Frequently Asked Questions About Sideloaders
What is a sideloader forklift used for?
What types of materials are best handled with a sideloader forklift?
What lift capacities are available for Raymond sideloaders?
How long of a load can a sideloader forklift handle?
Are sideloaders suitable for narrow aisle warehouse operations?
What industries commonly use side loading forklifts?
What are the advantages of a sideloader compared to a counterbalanced forklift?
