You're out of storage space. The options are lease another building, reconfigure what you already have, or automate. Someone mentioned shuttle systems and now you're trying to work out whether that's a serious option or a very expensive detour.

Here's what I'd want to know in your position: what the technology actually does, how it stacks up against the alternatives you're weighing, and what conditions have to be true for it to make sense.

That last part is where most content on this subject goes quiet. Almost everything written about pallet shuttles is published by companies that sell them, and it all concludes you should buy one. This won't.

Is a 4-Way Shuttle System the Right Answer to Your Space Problem?

A 4-way shuttle stores pallets multiple positions deep across multiple levels without dedicated aisles, typically tripling density. It fits operations with high throughput, concentrated SKU velocity, standardized pallets, and adequate ceiling height. If your pallets aren't uniform or your volume is spread thin across many slow SKUs, better racking will serve you at a fraction of the cost.

That's the honest version. A 4 way pallet shuttle system is genuinely impressive technology and it solves a real problem — but it solves a specific problem, and a lot of operations with a space crunch don't have that one.

How a 4-Way Pallet Shuttle Actually Works

A pallet shuttle system replaces the forklift inside the racking. Instead of aisles wide enough for a truck to drive down, you get a dense grid of storage positions with a robotic shuttle moving between them.

The pallets go in deep and stacked high. The shuttle goes and gets them.

What "4-Way" Means and Why It Matters

This is the distinction that defines the category, and it's worth getting straight.

A 2-way shuttle moves in one axis — forward and backward within a single storage lane. It's effective for deep-lane storage, but it's stuck in that lane. To move it to a different lane, a forklift operator physically lifts the shuttle out and repositions it. That's a semi-automated system with a person in the loop.

A 4-way shuttle moves along both horizontal axes independently. It travels down a lane, crosses to another lane, and does it without anyone touching it.

What that buys you:

• No forklift dependency inside the storage area — the shuttle handles lane changes on its own
• Access to any position on a level rather than any position within one lane
• Fewer shuttles required for the same number of storage positions, since each one serves a wider area
• Software-controlled task assignment, so the system routes around congestion instead of queueing behind it

That single mechanical difference is what separates a system that reduces forklift work from one that mostly eliminates it inside the racking.

The Components: Shuttles, Lifts, Rails, and Software

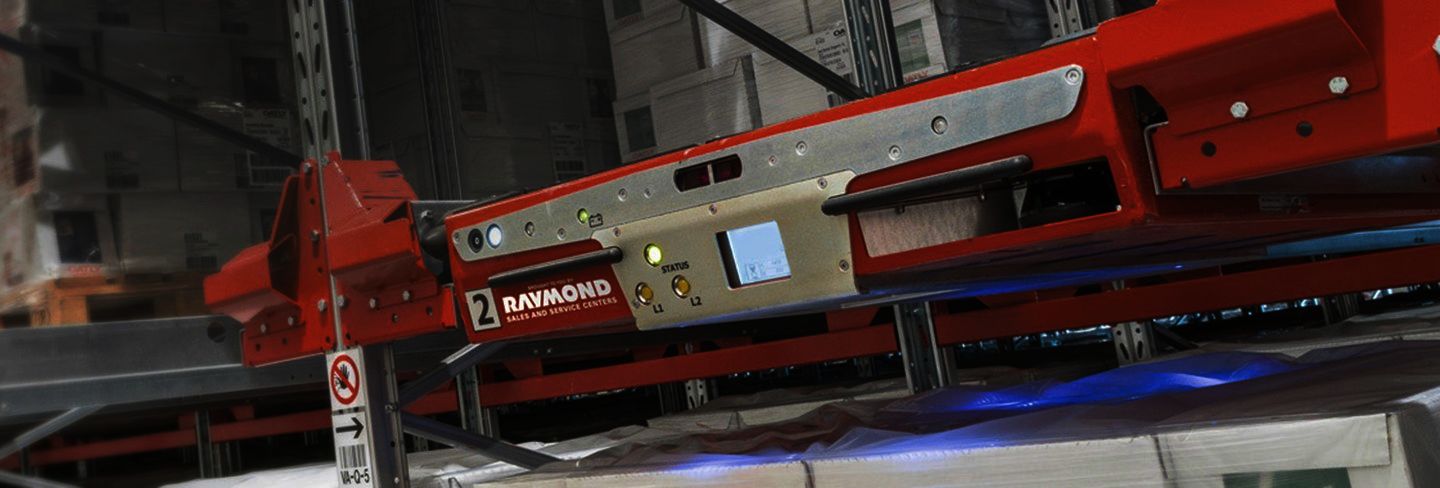

• Shuttle vehicles — battery-powered robots that lift and carry pallets along the rails
• Grid rail structure — intersecting steel rails on every storage level, forming the paths the shuttle travels. This is purpose-built racking, not a retrofit to what you have
• Shuttle lifts — vertical elevators that move shuttles and pallets between levels. Without these, each level is an island
• Conveyor interfaces — inbound and outbound connections where pallets enter and exit the system
• Warehouse control software (WCS) — the layer that assigns tasks, sequences movements, and manages traffic. Sits between your WMS and the hardware

What Throughput and Capacity Look Like in Practice

Published figures from system manufacturers give a reasonable picture, though your actual performance depends heavily on configuration:

• Travel speed — commonly 100–150 feet per minute loaded, roughly double that running empty
• Load capacity — typically up to around 3,300 lbs per pallet, which covers most standard palletized goods
• Density gain — manufacturers commonly claim 3–4× the capacity of conventional selective racking in the same footprint
• Throughput — scales with shuttle count rather than being fixed, which is the main advantage over crane systems. Add shuttles, add throughput

Treat the density multiplier carefully. Three to four times is against selective racking with full aisles. Against drive-in or push-back you're already partway there, and the delta is smaller.

Your Pallets Decide Whether This Is Even Possible

Here's the thing nobody tells you until late in the sales process.

The shuttle runs on rails and handles your pallet directly. It slides underneath, lifts, carries, and sets down — with no operator standing there to nudge a load that's sitting crooked or to notice that a stringer is cracked.

Which means your pallets have to be consistent. Not mostly consistent. Consistent.

What a shuttle-compatible pallet program requires:

• Uniform dimensions — one standard footprint, within tight tolerance. A grid built for 48×40 doesn't accommodate a 42×42 that showed up on an inbound load
• Structural integrity — cracked stringers, missing deck boards, protruding nails, and warped pallets all cause faults. In a manual operation an operator works around it. In a shuttle system it becomes a fault code and a stopped lane
• Consistent bottom-board configuration — the shuttle engages the pallet from below. Inconsistent bottom construction means inconsistent lifting
• Load stability — overhang, leaning loads, and unstable stacks don't survive automated handling at speed
• Quality grading — most systems require pallets meeting a defined specification, often verified by testing before the system is commissioned

The honest implication: if you run a mixed pallet pool — customer pallets, pooled pallets, whatever came in on the truck — you have a project before the project. Standardizing a pallet program means either buying into a pool program, implementing inbound pallet exchange, or running a transfer station that moves goods onto system-compatible pallets before they enter storage.

Each of those carries real cost and real operational change. None of them is a reason not to proceed. But they belong in your business case from the start, and an operation that isn't willing to take on pallet standardization is an operation that shouldn't be evaluating this technology yet.

4-Way Shuttle vs. the Alternatives You're Actually Weighing

Every comparison you'll find online is 4-way versus 2-way shuttle. That's useful if you've already decided on shuttle technology. It's not useful if you're at the beginning of this, where the real question is broader.

Here's the actual decision set, and the density-versus-selectivity trade-off runs underneath all of it — going deeper always costs you access, and the question is how much access you can afford to lose.

Manual High-Density Racking

Drive-in, push-back, pallet flow. Capital cost is a small fraction of an automated system, installation is measured in weeks rather than months, and the density gain over selective racking is real.

For a meaningful number of operations with a space problem, this is the correct answer, and I'd rather say that plainly than have you spend six figures finding out. The trade-off is that you keep the forklift dependency and you give up selectivity — drive-in is last-in-first-out, push-back limits you to one SKU per lane.

If you haven't fully explored this option, do that before you look at automation. The high-density pallet racking configurations guide covers what each type does and where each one breaks down.

Crane-Based ASRS

The established automated alternative. A stacker crane runs in a fixed aisle, serving positions on both sides, and it's proven technology with decades of installations behind it.

Where cranes hold an advantage: very high lift heights, extremely high throughput per aisle, and a longer track record for lenders and insurers who care about that.

Where shuttles hold an advantage: redundancy. If a crane fails, that entire aisle is inaccessible until it's fixed. If one shuttle in a fleet of twelve fails, you lose a twelfth of your throughput and the system keeps running. For an operation that can't tolerate a stoppage, that difference is significant.

Shuttles also scale more gradually — you add capacity by adding shuttles rather than by building another aisle.

Leasing Additional Space

The option every automation vendor leaves out of the comparison, and the one your CFO will raise in the first meeting.

Run it properly. Annual lease cost for the additional square footage, plus the operating cost of running a second location — labor, transport between sites, duplicated equipment, management overhead — against the amortized cost of the system plus its maintenance.

Sometimes leasing wins, particularly if your growth is uncertain or your current facility has a short lease horizon. Sometimes it loses badly once the second-site operating costs are counted honestly. Either way it belongs in the analysis, and a comparison that excludes it isn't a comparison.

Common Questions About Pallet Shuttle Systems

How Does a 4-Way Pallet Shuttle Work?

A 4-way pallet shuttle is a battery-powered robotic vehicle that travels on intersecting steel rails built into high-density racking, moving along both horizontal axes to reach any storage position on a level. Vertical lifts move the shuttle and pallets between levels, and warehouse control software assigns and sequences every movement. The result is multi-deep, multi-level storage with no forklift aisles and no operator inside the racking.

What Type of Pallets Work in a Shuttle System?

Shuttle systems require pallets that are dimensionally uniform, structurally sound, and consistent in bottom-board construction — because the shuttle lifts and carries the pallet directly with no operator to correct problems. Cracked stringers, missing deck boards, warped decks, and mixed footprints all cause faults and stopped lanes. Most systems specify a defined pallet grade and verify compliance before commissioning, which means operations running a mixed pallet pool need a standardization program in place first.

Is a Pallet Shuttle System Worth the Investment?

It depends almost entirely on throughput volume and SKU velocity concentration. Operations moving high daily pallet volume with a manageable number of fast-moving SKUs, adequate ceiling height, and a standardized pallet program can see strong returns through space recovery and reduced forklift labor. Operations with lower volume, highly variable SKUs, or a mixed pallet pool will usually get more value from improved racking and slotting at a fraction of the capital cost.

Start With the Problem, Not the Technology

The useful question isn't whether 4-way shuttle systems are good — they are. It's what's actually constraining your operation, and whether density is the constraint.

Sometimes it is, and a shuttle system is a strong answer. Often the constraint is slotting, or flow, or a racking configuration that made sense at a different volume. Those are cheaper problems to fix, and fixing them first means that if you do eventually automate, you're automating something that already works.

Working out which situation you're in takes an honest look at throughput, SKU velocity, pallet condition, and what your building can physically support. That's analysis, not a sales call. A partner who designs across manual racking, conveyor, and automated storage and retrieval systems has no structural reason to point you toward the most expensive option — which is worth something when you're making a decision this size.
