Pallet Jacks
-
When Powered Pallet Trucks Pay for Themselves
Powered pallet trucks make sense when the math starts working against you. An operator pushing a manual jack across a large floor slows down over a shift. That's not a training issue — it's physics, and it shows up in your picks-per-hour number.
The break-even usually comes down to three things: how far your operators travel per move, how many moves they make per shift, and what your labor cost per hour actually is. When travel distance and frequency are both high, powered equipment recovers its cost faster than most people expect.
There's an energy side too. Raymond's third-party testing on the 8410 found 6% faster cycle times and 33% less energy use than the competing model — which translates to fewer battery changes per shift and less charging infrastructure needed overall.
Call 800-926-2546 and we'll talk through what your current setup is costing you in throughput.
Walkie Pallet Jack or Rider? Start With Travel Distance
This is the first real decision, and travel distance answers it faster than anything else. Short, frequent moves favor a walkie. Long runs across a facility favor a rider.
A walkie pallet jack is operated by someone walking alongside it. The operator has full control in confined areas, which makes these models the right pick for dock work, trailer loading, and anywhere aisles are tight or traffic is dense.
The 8210 handles 4,500 lbs on a 28-inch frame. The 8310 steps up to 6,000 or 8,000 lbs in multiple frame lengths — a solid choice if you need power pallet jack 8000 lb capacity without moving to a rider platform.
A rider model gives the operator a platform to stand on. Once travel distances get long enough, that platform stops being a comfort feature and starts being a throughput feature — operators cover ground faster and finish a shift with more left in the tank.
You have four configurations here. The 8410 and 8910 end riders put the operator at the rear. The 8510 center rider positions them mid-truck for better visibility in both directions. The 8810 side entry makes getting on and off faster, which matters when operators are dismounting frequently. All four run 6,000 or 8,000 lbs.
If you're picking from the second load beam occasionally but not enough to justify a dedicated order picker, there's a middle option. The 8720 second-level order picker handles it directly. The 8410 can also be configured with pyramid pick steps accessible from either side — a lower-cost path to the same capability when second-level picking is a part of the job rather than the whole job.
Compare The Raymond 8000 Series Electric Pallet Jacks
Eight models, capacities from 4,500 to 8,000 lbs, multiple frame lengths and widths across the range. If you're shopping for a motorized pallet jack or comparing an electric pallet jack for sale across suppliers, this is the full Raymond lineup in one place. Compare by capacity, configuration, and battery type below. If two models look close and you're not sure which fits, that's a two-minute phone call. Call 800-926-2546 with your load weights and travel distances.
Find The Right Pallet Jack For You
Electric pallet jacks are available in multiple configurations, including walkie, rider, and high-capacity models designed for different warehouse applications. Compare electric pallet jack models based on capacity, configuration, and application to find the right fit for your operation.
8210 Walkie Pallet Jack
- Capacity: 4,500 lbs.
- Frame Width: 28" overall width
- Battery: 24 volt
Learn More
8250 Lithium-ion Pallet Jack
- Capacity: 5,000 lbs.
- Frame Width: 28" overall width
- Battery: 24 volt (26 nominal) Lithium-ion, 78 amp hour
Learn More
8310 Walkie Pallet Jack
- Capacity: 6,000 lbs. or 8,000 lbs.
- Frame Length: Available in multiple lengths and widths
- Battery: 24 volt
Learn More
8410 End Rider Pallet Jack
- Capacity: 6,000 lbs. or 8,000 lbs.
- Frame Length: Available in multiple lengths and widths
- Battery: 24 volt
Learn More
8510 Center Rider Pallet Truck
- Capacity: 6,000 lbs. or 8,000 lbs.
- Frame Length: Available in multiple lengths and widths
- Battery: 24 volt
Learn More
8720 Second Level Orderpicker
- Capacity: 6,000 lbs. or 8,000 lbs.
- Frame Length: Single, Double and Triple Configurations
- Battery: 24 volt
Learn More
8810 Side Entry Pallet Truck
- Capacity: 6,000 lbs. or 8,000 lbs.
- Battery: 24 volt
Learn More

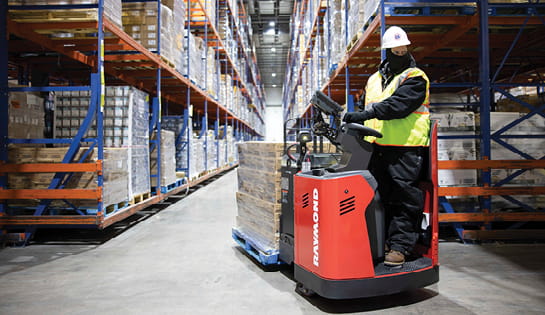

8910 End Rider Pallet Jack
- Capacity: 6,000 lbs. or 8,000 lbs.
- Frame Length: Available in multiple lengths and widths
- Battery: 24 volt
Learn More
Lithium-Ion or Lead-Acid? What Actually Drives the Decision
This is where a lot of buyers get talked into the wrong thing. A lithium ion pallet jack costs more upfront, and whether that premium pays back depends entirely on how you run your operation — not on which technology is newer.
-
When Lithium-Ion Justifies the Premium

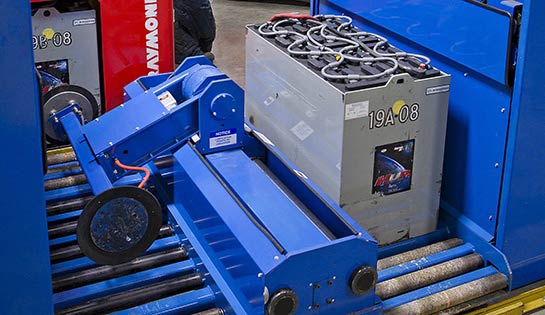

Lithium-ion earns its cost in multi-shift operations. It supports opportunity charging, so operators can top off during breaks without damaging the battery. Voltage stays consistent through the shift instead of dropping off. There's no watering, and no battery room, no change-out equipment, and no spare batteries sitting in inventory.
If you're running two or three shifts and currently managing a battery change-out process, the 8250 is built specifically around eliminating that. The savings show up in labor and floor space, not just in the battery itself.
-
When Lead-Acid Is Still the Right Call
If you run a single shift and already have charging infrastructure in place, lead-acid usually remains the better financial decision. The battery charges overnight, runs the shift, and repeats. Paying a lithium premium to solve a problem you don't have doesn't return anything.
We'll tell you which one fits your operation. Sometimes the answer is the cheaper one.
Boost Productivity With Increased Picking Accuracy
How do electric pallet jacks improve picking accuracy?
Put-to-light systems like Pick2Pallet help warehouse operations improve picking accuracy and efficiency. The Pick2Pallet LED Light System helps reduce errors in batch picking applications.
This system:
- Uses LED lights embedded into each fork
- Visually indicates where items should be placed
- Reduces picking errors
- Increases picking speed and accuracy
This allows you to take advantage of batch picking while maintaining high levels of accuracy and efficiency.
Interested in a Raymond Pallet Jack? Let's Talk!
A representative will use the information you provide below to develop the best solutions for your operation.
